MIL-S-63302 (AR)
3.6.2 Main charge lead train functioning - Dwq. 9328756:
Delay Detonator, PA-506. - Dwg. 9292700: Microdetonator M100.
Upon initiation of the appropriate detonator for the particular
S&A listed above, the main charge lead train explosive elements
shall function high order and cause the specified min. dents in a
steel confining ring (witness block) at the temperature
indicated. The test shall be performed as specified in 4.5.18.1-
/4.5.18.2. In the case of Delay Det PA 506, the output from the
main leads shall occur between 20 milliseconds (ins) and 50 ms
after initiation of the delay detonator (applies to Dwg. 93287516
only).

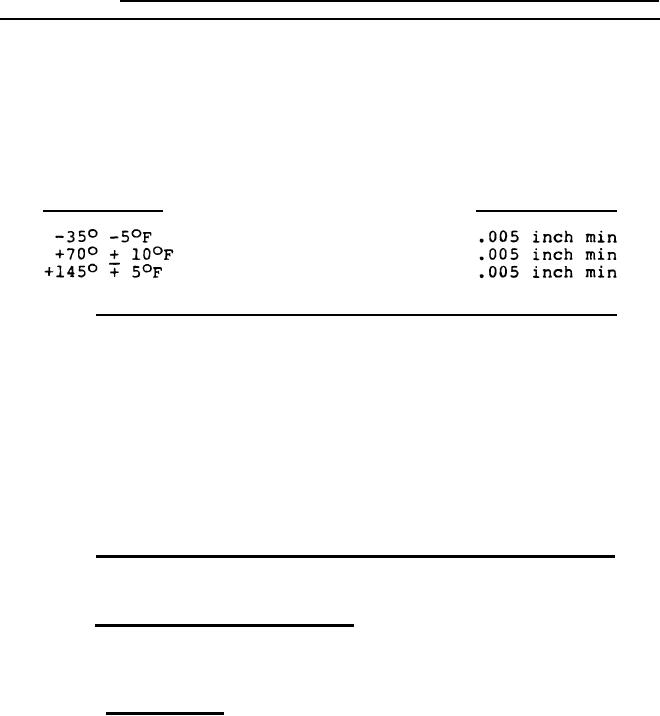

Temperature
Depth of Dent
3.7 Verification of safe condition of S&A assemblies. Prior
to packaging, positive verification of the presence and safe
position of the following safety features shall be made for each
assembly (See 4.5.19).
a.
Safe position of both spring loaded centrifugal
locks.
b.
Safe position of slider release pin and shear pin.
c.
Safe position of spring loaded slider assembly:
distance of slider assembly from end of S&A,
maximum (max.).
3.8 Detonator and micropiston actuator short circuit.
The
resistance of the short circuit across the detonator(s)/-
micropiston actuator shall be less than 0.015 ohm.
3.9 First article inspection. This specification contains
technical provisions for first article inspection. Requirements
for the submission of first article samples by the contractor
shall be as specified in the contract.
3.10 Workmanship. All parts and assemblies shall be
fabricated, loaded and assembled in a thorough, workmanlike
manner. They shall be free of burrs, sharp edges, cracks, dirt,
grease, rust, and other foreign matter. The cleaning method used
shall not be injurious to any parts, nor shall the parts be
5
